Open Network Diagram helps you document your infrastructure in a visual UI while keeping a real JSON source of truth you can version, back up, and reuse.

Homelab-friendly: run it in minutes with Docker.
Practical: edit in the UI and autosave to network.json.
Declarative: keep your topology in Git if you wish.

Docker Hub | Live Demo (Read-Only) | GitHub Releases

Features

Network view with ethernet labels to make physical and logical links easy to read.
Hosts & VMs view for host-first inventory and service mapping.
Rack view: managed racks with U positions and heights, side-by-side shelf items, and click-through to the editor.
Node search that highlights matches by name, IP, role or OS and dims everything else.
IPAM panel: per-subnet utilization, duplicate-IP conflict detection, and next-free-IP suggestions when adding machines, devices or VMs.
Subnet and VLAN declarations, with nodes colour-coded by VLAN and a clickable legend filter.
Cable tracking on connections (type, colour, length) with colour-coded links and hover details.
Expandable VM lists per machine for quick virtualization visibility.
Modal editor for machines/devices with live diagram updates, notes and MAC address fields.
JSON-backed persistence with autosave in self-hosted mode.
Docker-first deployment with writable data volume support.
Optional read-only mode for public demos and safe sharing.
Local vendored icon catalog for offline-friendly runtime behavior.

Why Home Lab Users Use It

Keep an always-up-to-date map of machines, VMs, and devices.
Find a free IP and spot duplicate assignments without a spreadsheet.
Know exactly what's in your rack and where, down to the U.
Edit quickly through a modal UI instead of hand-editing large diagrams.
Persist everything to JSON so backups and Git workflows stay simple.
Stay fully self-hosted with no runtime dependency on external APIs.

2-Minute Docker Quick Start

This is the fastest way to run Open Network Diagram for a home lab.

Create a local data folder and seed your first network.json:

mkdir -p ond-data
curl -fsSL https://raw.githubusercontent.com/jcreek/OpenNetworkDiagram/main/data/network.json.example -o ond-data/network.json

Run the published Docker image:

docker run -d \
  --name open-network-diagram \
  --restart unless-stopped \
  -p 8080:3000 \
  -e NETWORK_DATA_FILE=/app/data/network.json \
  -e NETWORK_BACKUP_DIR=/app/data/.backups \
  -v "$(pwd)/ond-data:/app/data" \
  jcreek23/open-network-diagram:latest

Open the app at http://localhost:8080.
Edit your topology in the UI. Changes persist to ond-data/network.json.

Useful follow-up commands:

docker logs -f open-network-diagram
docker stop open-network-diagram
docker rm open-network-diagram

What It Looks Like

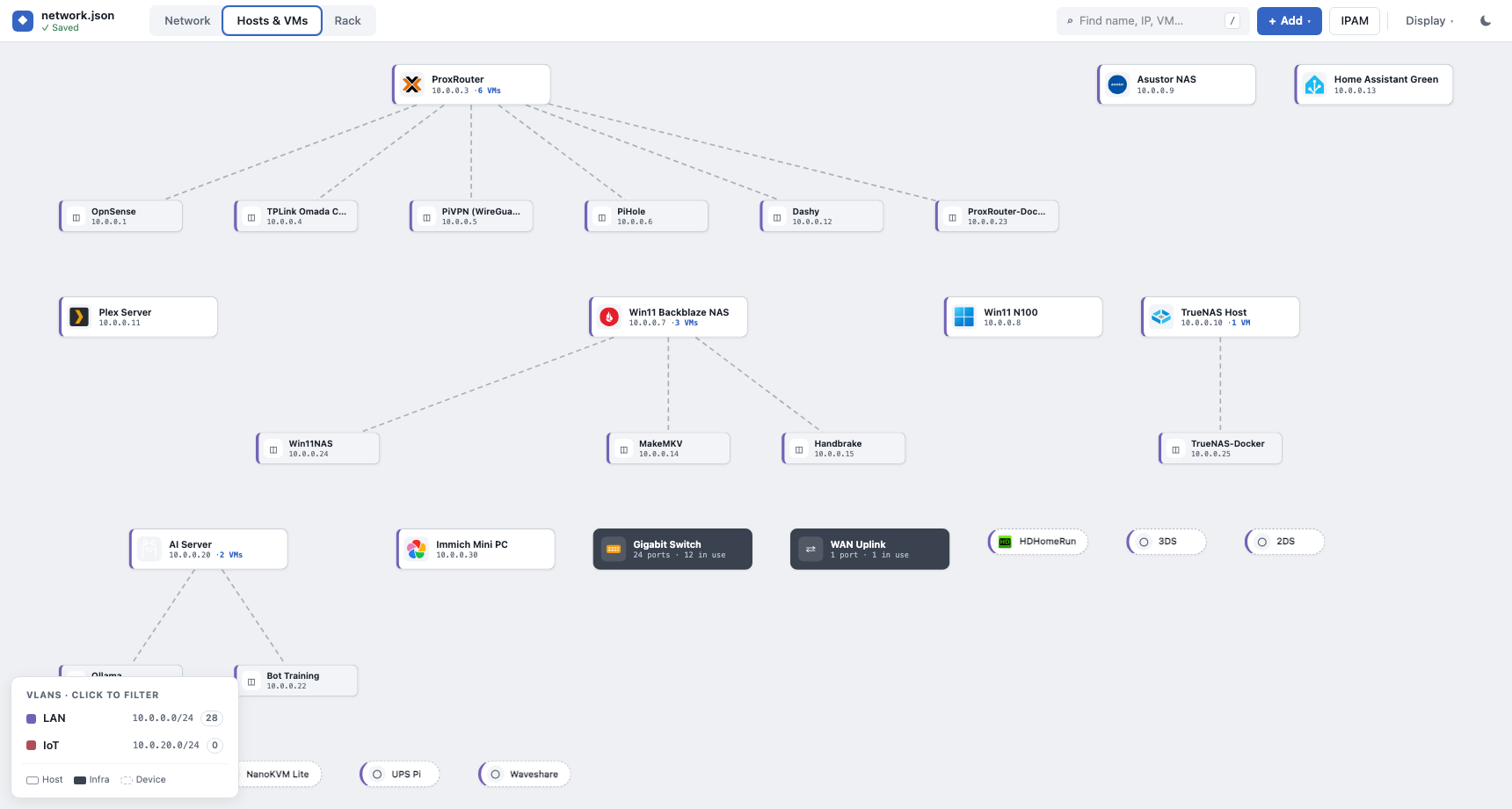

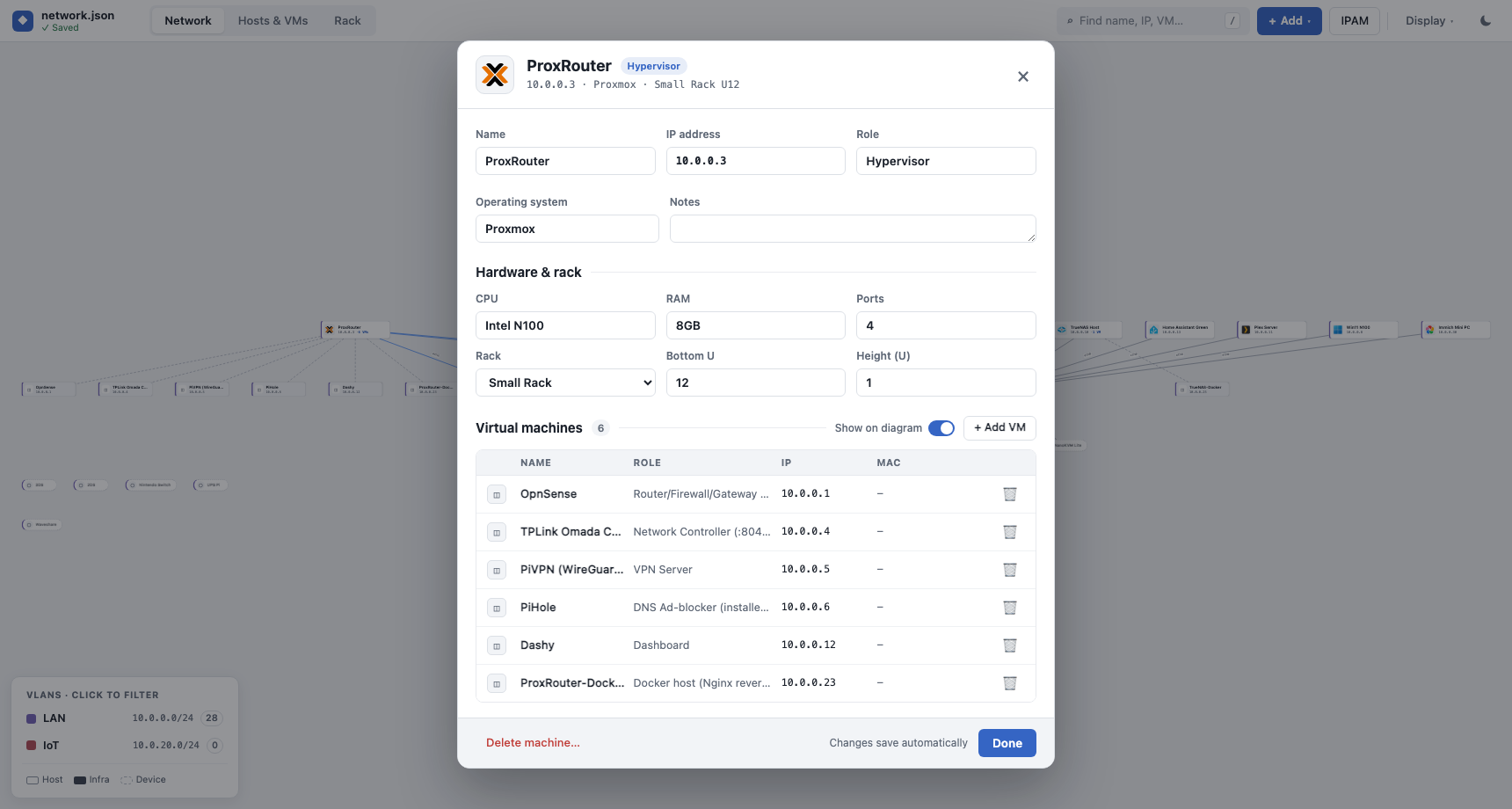

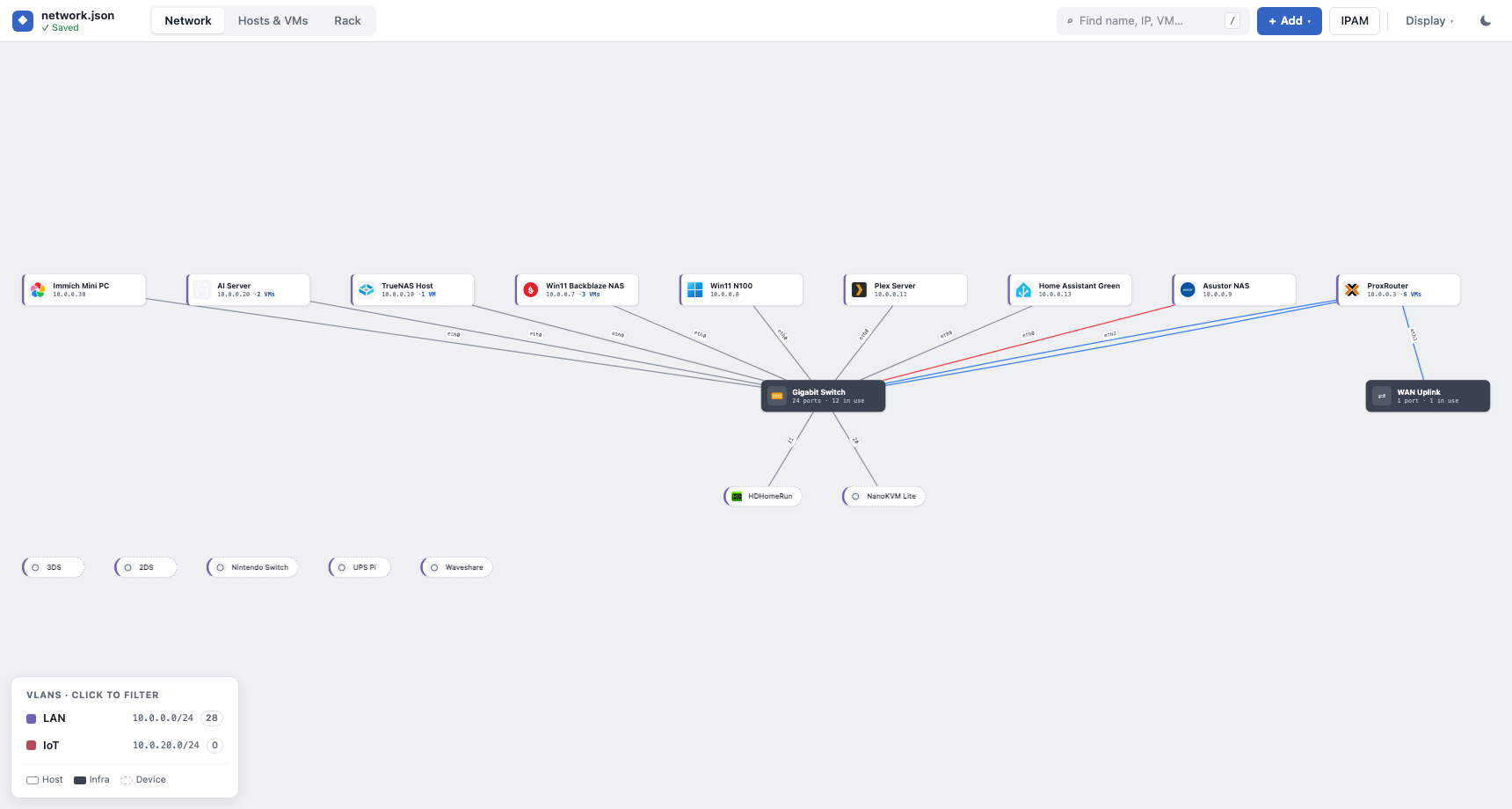

Network view with ethernet labels	Hosts & VMs view with VMs expanded	Modal editing a machine

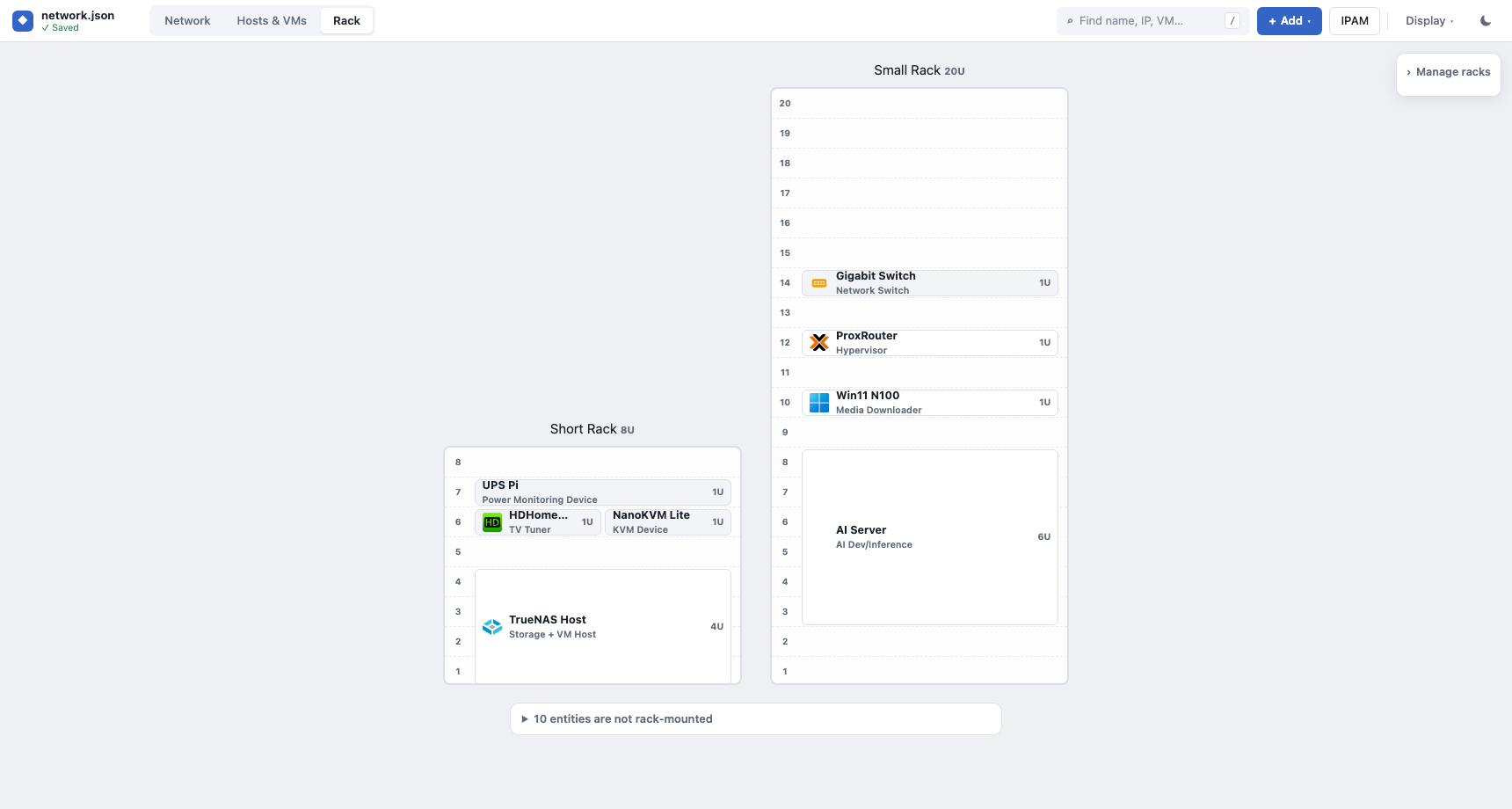

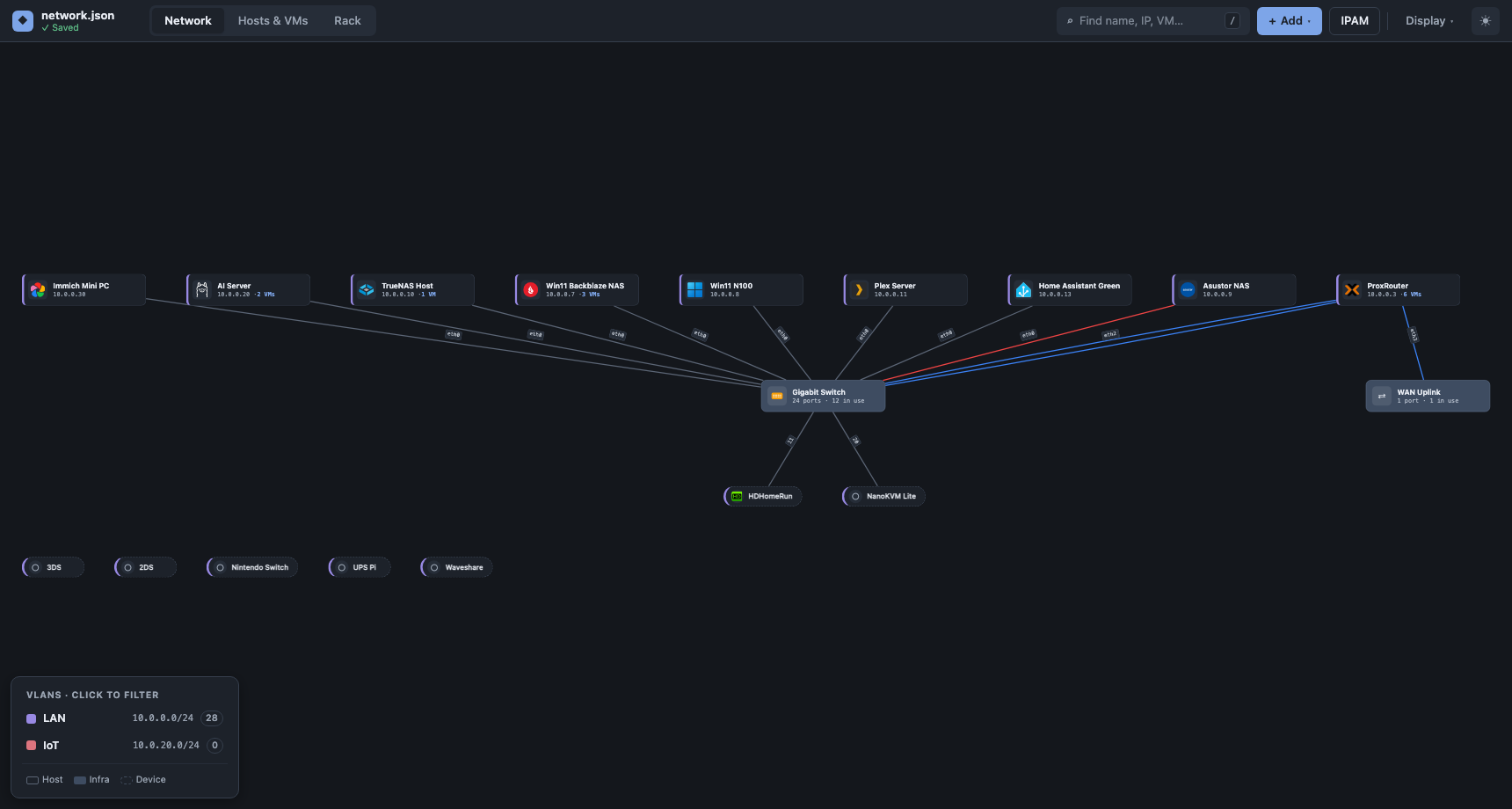

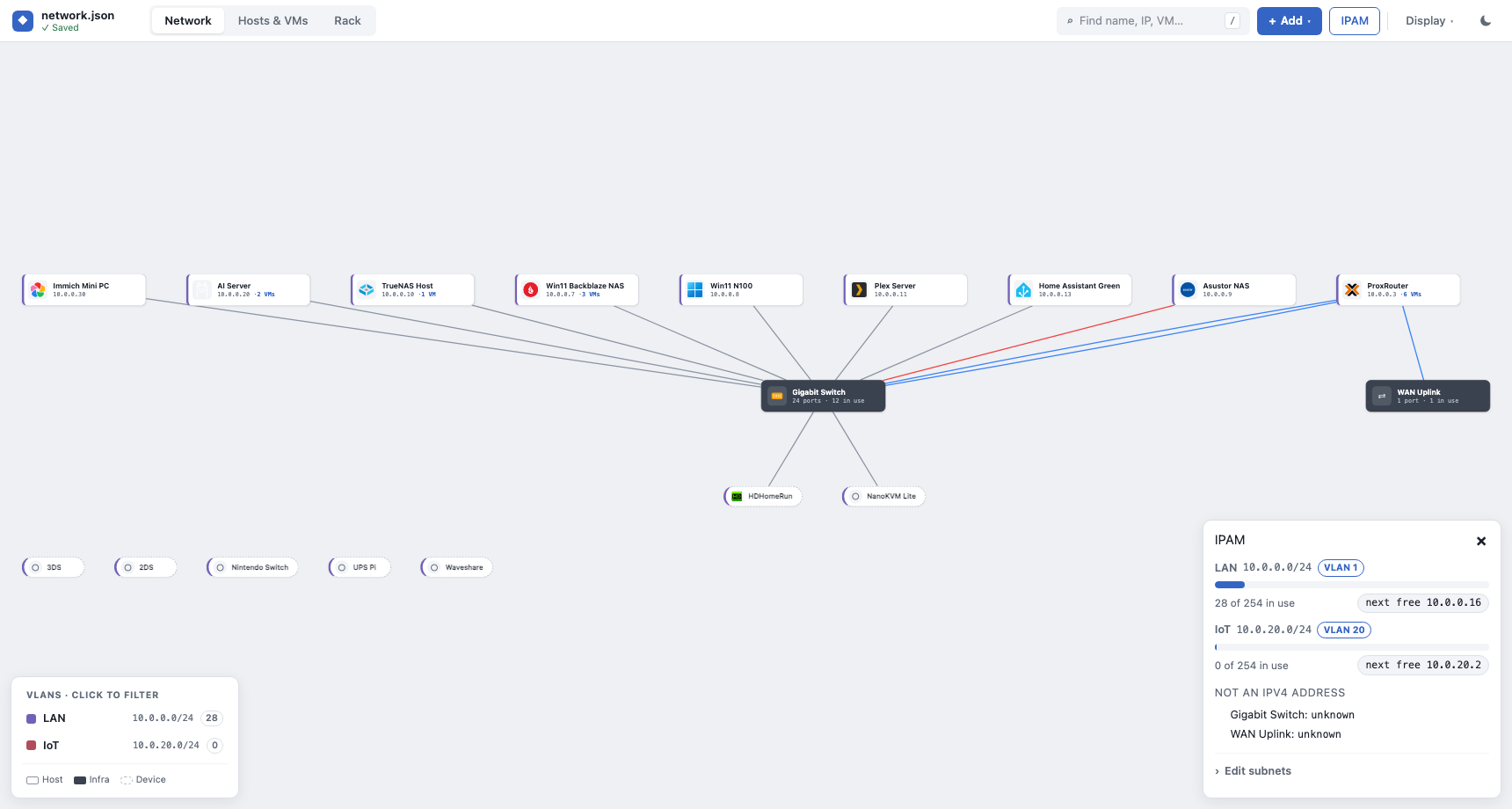

IPAM panel with subnet utilization	Rack view with shelf items	Dark mode

Docker Compose Option

If you prefer compose:

services:
  open-network-diagram:
    image: jcreek23/open-network-diagram:latest
    ports:
      - '8080:3000'
    volumes:
      - ./ond-data:/app/data
    environment:
      NETWORK_DATA_FILE: /app/data/network.json
      NETWORK_BACKUP_DIR: /app/data/.backups
    restart: unless-stopped

Start it with:

docker compose up -d

For Developers

Local Development

git clone https://github.com/jcreek/OpenNetworkDiagram.git
cd OpenNetworkDiagram
pnpm install
pnpm run dev

App URL: http://localhost:5173

Build Targets

pnpm run build          # default build
pnpm run build:docker   # Docker/static target
pnpm run build:netlify  # Netlify target (read-only mode)
pnpm run icons:manifest # regenerate local vendor icon manifest

Runtime and Persistence

API endpoint: GET/PUT /api/network-data
Writes are enabled unless NETWORK_READ_ONLY=true
When writes are unavailable, API responses include writableReason for diagnostics.
Writes are persisted atomically to the configured data file
Rolling backups are kept in the backup directory (last 5)

Environment variables:

NETWORK_READ_ONLY (default: false)
- Set to true to disable writes and force read-only mode.
NETWORK_DATA_FILE (default: data/network.json)
- JSON file path to read/write.
NETWORK_BACKUP_DIR (default: data/.backups)
- Directory for backup files.

JSON Example

{
	"machines": [
		{
			"machineName": "ProxRouter",
			"ipAddress": "10.0.0.3",
			"role": "Hypervisor",
			"operatingSystem": "Proxmox",
			"notes": "Primary router box.",
			"software": {
				"vms": [
					{
						"name": "OpnSense",
						"role": "Router",
						"ipAddress": "10.0.0.4",
						"macAddress": "bc:24:11:5a:2e:01"
					}
				]
			},
			"hardware": {
				"cpu": "Intel N100",
				"ram": "8GB",
				"networkPorts": 4
			},
			"ports": [
				{
					"portName": "eth0",
					"speedGbps": 1,
					"connectedTo": {
						"device": "Switch",
						"port": "1",
						"cable": { "type": "Cat6", "color": "blue", "lengthM": 1 }
					}
				}
			],
			"rack": { "name": "Lab Rack", "unit": 10 }
		}
	],
	"devices": [
		{
			"name": "Switch",
			"ipAddress": "10.0.0.2",
			"type": "Network Switch",
			"ports": [
				{
					"portName": "1",
					"speedGbps": 1,
					"connectedTo": {
						"device": "ProxRouter",
						"port": "eth0",
						"cable": { "type": "Cat6", "color": "blue", "lengthM": 1 }
					}
				}
			],
			"rack": { "name": "Lab Rack", "unit": 12 }
		}
	],
	"subnets": [{ "cidr": "10.0.0.0/24", "name": "LAN", "vlanId": 1 }],
	"racks": [{ "name": "Lab Rack", "heightU": 12 }]
}

Notes on the optional fields:

subnets powers the IPAM panel and VLAN colouring (vlanId is optional per subnet).
racks declares rack names and total units for the rack view; machines/devices opt in with a rack placement (unit is the bottom U, heightU defaults to 1). Items with the identical U range render side by side as shelf-mates.
cable on a connectedTo records type/colour/length and is kept identical on both ends automatically.
notes (machines and devices) and macAddress (ports and VMs) are free text.

Project Structure

OpenNetworkDiagram/
├── src/                               # Svelte app source
├── src/lib/shared/                    # Schema + persistence core (shared with server.mjs)
├── src/lib/config/vendorIconManifest.ts # Generated local icon catalog
├── static/data/network.json           # Demo dataset (Netlify)
├── static/icons/vendor/               # Vendored icon assets (runtime-local)
├── data/network.json.example          # Starter data template for Docker users
├── third_party/                       # Third-party provenance + licensing
├── Dockerfile                         # Docker build/runtime image
├── server.mjs                         # Node runtime server (static + API)
├── docker-compose.yml                 # Local compose example (build from repo)
├── netlify.toml                       # Netlify build config
└── .github/workflows/                 # CI workflows

CI/CD

docker.yml: validates Docker build on pull requests.
release.yml: semantic release on main and Docker Hub publish for tagged releases.
Docker Hub image: jcreek23/open-network-diagram

Contributing

Fork the repository.
Create a feature branch.
Commit your changes.
Push your branch.
Open a pull request.

License

GNU GPL v3
