Open Network Diagram

A declarative, self-hosted containerised tool for visualising and managing home lab & network architecture diagrams.

Open Network Diagram helps you document your infrastructure in a visual UI while keeping a real JSON source of truth you can version, back up, and reuse.

• Homelab-friendly: run it in minutes with Docker.
• Practical: edit in the UI and autosave to network.json.
• Declarative: keep your topology in Git if you wish.

Docker Hub | Live Demo (Read-Only) | GitHub Releases

Features

• Network view with ethernet labels to make physical and logical links easy to read.
• Non-network view for host-first inventory and service mapping.
• Expandable VM lists per machine for quick virtualization visibility.
• Modal editor for machines/devices with live diagram updates.
• JSON-backed persistence with autosave in self-hosted mode.
• Docker-first deployment with writable data volume support.
• Optional read-only mode for public demos and safe sharing.
• Local vendored icon catalog for offline-friendly runtime behavior.

Why Home Lab Users Use It

• Keep an always-up-to-date map of machines, VMs, and devices.
• Edit quickly through a modal UI instead of hand-editing large diagrams.
• Persist everything to JSON so backups and Git workflows stay simple.
• Stay fully self-hosted with no runtime dependency on external APIs.

2-Minute Docker Quick Start

This is the fastest way to run Open Network Diagram for a home lab.

1. Create a local data folder and seed your first network.json:

mkdir -p ond-data
curl -fsSL https://raw.githubusercontent.com/jcreek/OpenNetworkDiagram/main/data/network.json.example -o ond-data/network.json

2. Run the published Docker image:

docker run -d \
  --name open-network-diagram \
  --restart unless-stopped \
  -p 8080:3000 \
  -e NETWORK_DATA_FILE=/app/data/network.json \
  -e NETWORK_BACKUP_DIR=/app/data/.backups \
  -v "$(pwd)/ond-data:/app/data" \
  jcreek23/open-network-diagram:latest

3. Open the app at http://localhost:8080.

4. Edit your topology in the UI. Changes persist to ond-data/network.json.

Useful follow-up commands:

docker logs -f open-network-diagram
docker stop open-network-diagram
docker rm open-network-diagram

What It Looks Like

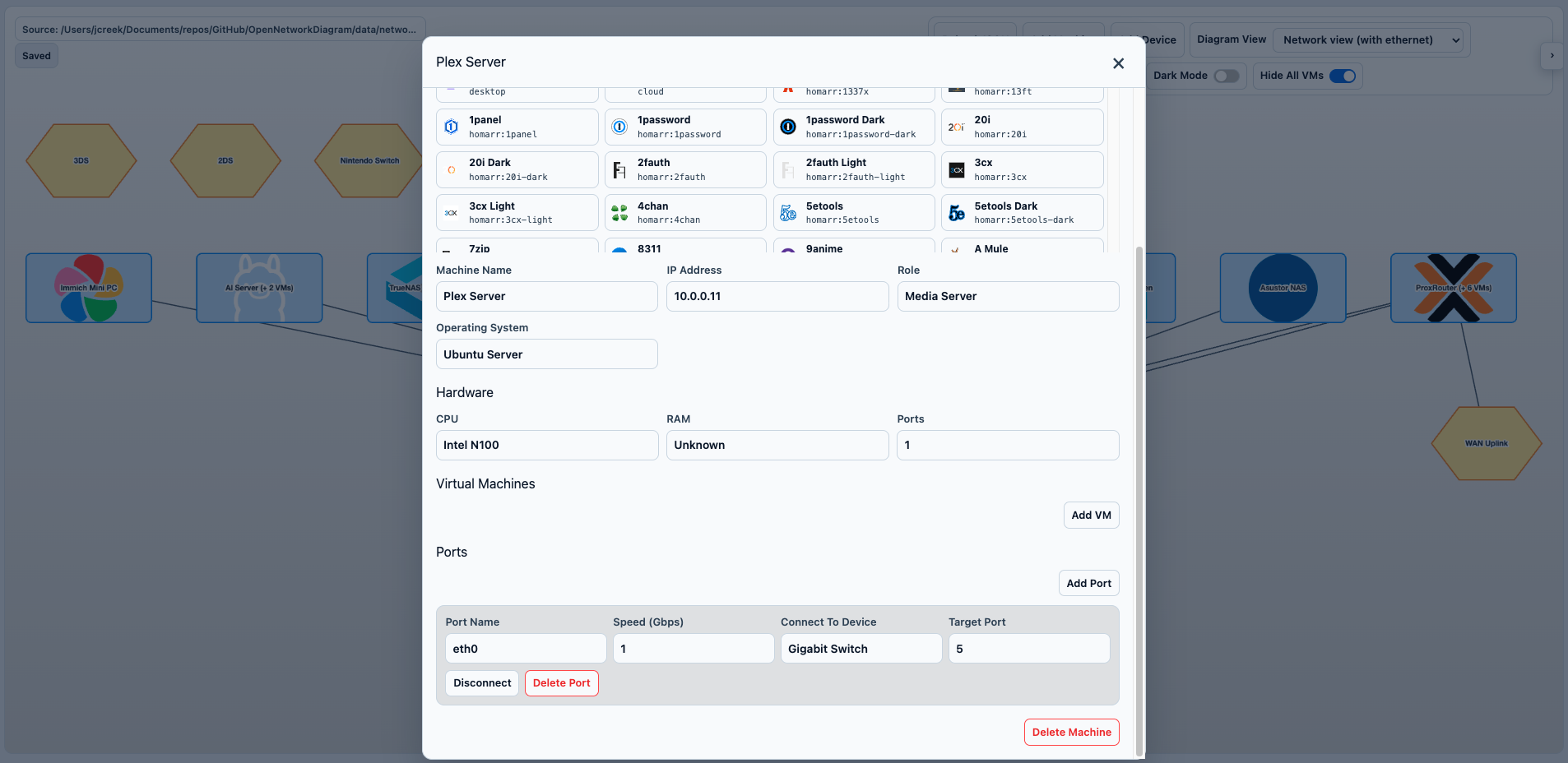

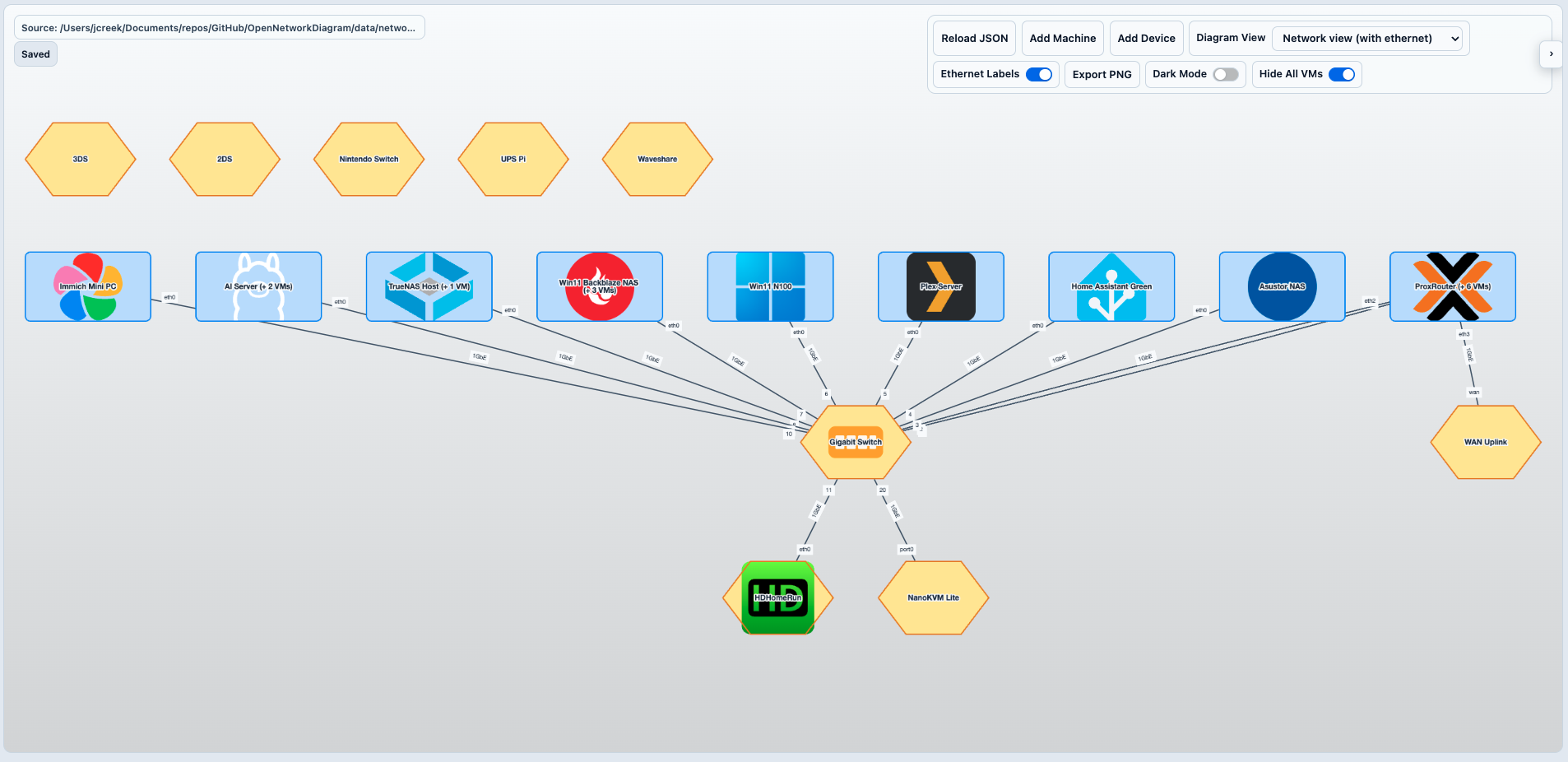

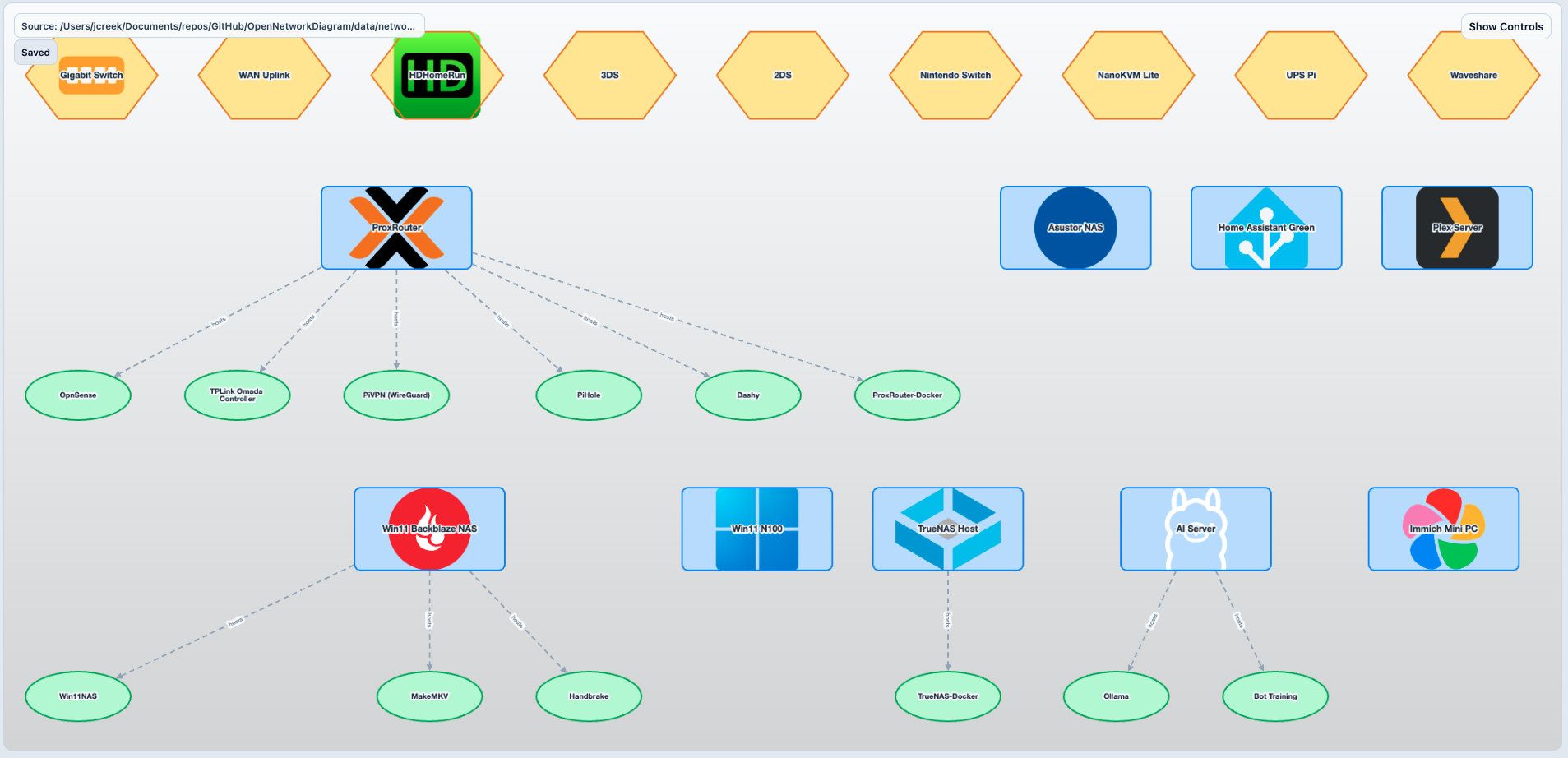

Network view with ethernet labels	Non-network view with VMs expanded	Modal editing a machine

Docker Compose Option

If you prefer compose:

services:
  open-network-diagram:
    image: jcreek23/open-network-diagram:latest
    ports:
      - '8080:3000'
    volumes:
      - ./ond-data:/app/data
    environment:
      NETWORK_DATA_FILE: /app/data/network.json
      NETWORK_BACKUP_DIR: /app/data/.backups
    restart: unless-stopped

Start it with:

docker compose up -d

For Developers

Local Development

git clone https://github.com/jcreek/OpenNetworkDiagram.git
cd OpenNetworkDiagram
pnpm install
pnpm run dev

App URL: http://localhost:5173

Build Targets

pnpm run build          # default build
pnpm run build:docker   # Docker/static target
pnpm run build:netlify  # Netlify target (read-only mode)
pnpm run icons:manifest # regenerate local vendor icon manifest

Runtime and Persistence

• API endpoint: GET/PUT /api/network-data
• Writes are enabled unless NETWORK_READ_ONLY=true
• When writes are unavailable, API responses include writableReason for diagnostics.
• Writes are persisted atomically to the configured data file
• Rolling backups are kept in the backup directory (last 5)

Environment variables:

• NETWORK_READ_ONLY (default: false)
  • Set to true to disable writes and force read-only mode.
• NETWORK_DATA_FILE (default: data/network.json)
  • JSON file path to read/write.
• NETWORK_BACKUP_DIR (default: data/.backups)
  • Directory for backup files.

JSON Example

{
	"machines": [
		{
			"machineName": "ProxRouter",
			"ipAddress": "10.0.0.3",
			"role": "Hypervisor",
			"operatingSystem": "Proxmox",
			"software": {
				"vms": [{ "name": "OpnSense", "role": "Router", "ipAddress": "10.0.0.4" }]
			},
			"hardware": {
				"cpu": "Intel N100",
				"ram": "8GB",
				"networkPorts": 4
			}
		}
	],
	"devices": [{ "name": "Switch", "ipAddress": "10.0.0.2", "type": "Nintendo Switch" }]
}

Project Structure

OpenNetworkDiagram/
├── src/                               # Svelte app source
├── src/lib/config/vendorIconManifest.ts # Generated local icon catalog
├── static/data/network.json           # Demo dataset (Netlify)
├── static/icons/vendor/               # Vendored icon assets (runtime-local)
├── data/network.json.example          # Starter data template for Docker users
├── third_party/                       # Third-party provenance + licensing
├── Dockerfile                         # Docker build/runtime image
├── server.mjs                         # Node runtime server (static + API)
├── docker-compose.yml                 # Local compose example (build from repo)
├── netlify.toml                       # Netlify build config
└── .github/workflows/                 # CI workflows

CI/CD

• docker.yml: validates Docker build on pull requests.
• release.yml: semantic release on main and Docker Hub publish for tagged releases.
• Docker Hub image: jcreek23/open-network-diagram

Contributing

1. Fork the repository.
2. Create a feature branch.
3. Commit your changes.
4. Push your branch.
5. Open a pull request.

License

GNU GPL v3
